Industrial Air Cleaners
Flowtron Series
Filtration Units for Ambient Dust
Flowtron AC Series
Self-Cleaning Cartridge Air Cleaners
Quiet, Efficient Operation
The Flowtron Air Cleaner is packed with design features that go straight to the bottom line. The film-laminated media is state-of-the-art for collecting fine dust in heavy concentrations from a wide range of welding, grinding, and finishing operations. The large capacity dust filters clean thoroughly off-line for the lowest cost per pound of collected dust, and the low-speed backward inclined blower reduces the energy cost of moving the air.
SRR Self-Cleaning System
As compressed air reaches near-sonic velocity exiting from our Sonic Resonating Rapper™, its whipping motion raps the inside of the cartridge, dislodging even the material deeply packed into the pleats.
Features
- Efficient Air Movement:
- Backward-inclined, airfoil blower: 1800 RPM, 22.5 dia., 5000 cfm.
- Ducted dual discharge
- Quiet Operation: Internal blower silencer: 78dBA
- Easy Dust Disposal: Hopper or Tray Design
- Effective Filtration: High-efficiency filters are vertically oriented, large capacity, film-laminated media, with Sonic Resonating Rapper™ cleaning.
- Durable Construction: Heavy gauge (12 & 16 ga.) all-welded steel cabinet

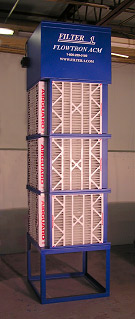

Flowtron ACM Series
Standard Panel Filter Air Cleaners
Efficient, User-Friendly Operation
The Flowtron ACM uses a direct-drive, backward-inclined wheel to eliminate belt-drive losses as well as belt-drive maintenance. The Flowtron's backward-inclined wheel also maintains a more consistent air flow as the filters load and the pressure changes.
The ACM also uses standard MERV 11 24x24x4 inch filters for most applications. In addition, standard size application-specific filter panels may be used for various kinds of contaminants. The filters are in full view and completely accessible: as soon as a filter is full, it simply slides out laterally for easy replacement / cleaning.

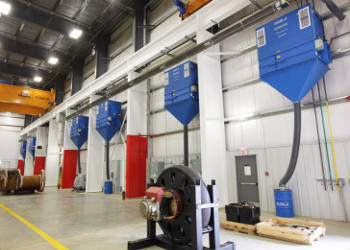

Stack It or Hang It
The Flowtron ACM may be hung from the ceiling to conserve floor space, or sit on its base, with as many stacked modules as space allows and the dust load requires. Each module measures 24x32x32 inches, and has four fully accessible 24x24x4 inch filter slots.
